Product Summary
The MIC2954-08YM is a bulletproof efficient voltage regulator with very low dropout voltage (typically 40mV @ light loads and 375mV @ 250mA), and low quiescent current (120µA typical). The quiescent current of the MIC2954-08YM increases only slightly in dropout, thus prolonging battery life. Key MIC2954 features include protection against reversed battery, fold-back current limiting, and automotive load dump protection (60V positive transient). The applicaitons of the MIC2954-08YM are (1)Battery powered equipment; (2)Cellular telephones; (3)Laptop, notebook, and palmtop computers; (4)PCMCIA VCC and VPP regulation/switching; (5)Bar code scanners; (6)Automotive electronics; (7)SMPS post-regulator/dc-to-dc modules; (8)Voltage reference; (9)High-efficiency linear power supplies.
Parametrics
MIC2954-08YM absolute maximum ratings: (1)Supply Voltage (VIN): –20V to +60V; (2)Feedback Voltage (VFB): –1.5V to +26V; (3)Shutdown Input Voltage (VSHDN): –0.3V to +30V; (4)Error Output Voltage (VERR): –0.3V to +30V; (5)Power Dissipation (PD): Internally Limited; (6)Lead Temperature (soldering, 5 sec.): 260℃; (7)Storage Temperature (Ts):–65 to +150℃.
Features
MIC2954-08YM features: (1)High-accuracy 5V, guaranteed 250mA output; (2)Low quiescent current; (3)Low dropout voltage; (4)Extremely tight load and line regulation; (5)Very low temperature coefficient; (6)Current and thermal limiting; (7)Input can withstand –20V reverse battery and+60V positive transients; (8)Error flag warns of low output voltage; (9)Logic-controlled electronic shutdown; (10)Output programmable from 1.24V to 29V; (11)Available in TO-220, TO-92, and surface-mount SOT-223 and SOIC-8 packages.

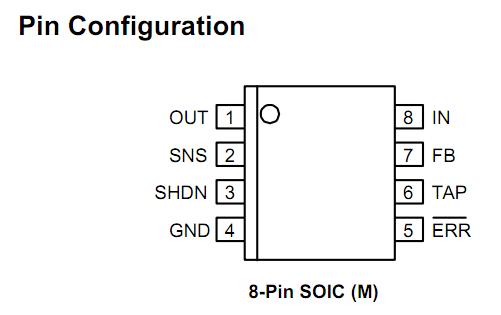

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2954-08YM |
|
IC REG LDO 5V/ADJ .25A 8-SOIC |
Data Sheet |
|
|
||||||||||||||
|
MIC2954-08YM TR |
|
IC REG LDO 5V/ADJ .25A 8SOIC |
Data Sheet |
|
|
||||||||||||||
