Product Summary

The PIC16F684-I/SL is a 14-Pin flash-based, 8-Bit CMOS microcontroller with nanoWatt technology.

Parametrics

PIC16F684-I/SL absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA and PORTC (combined): 200 mA.

Features

PIC16F684-I/SL features: (1)Only 35 instructions to learn: All single-cycle instructions except branches; (2)Operating speed: DC - 20 MHz oscillator/clock input; DC - 200 ns instruction cycle; (3)Interrupt capability; (4)8-level deep hardware stack; (5)Direct, Indirect and Relative Addressing modes.

Diagrams

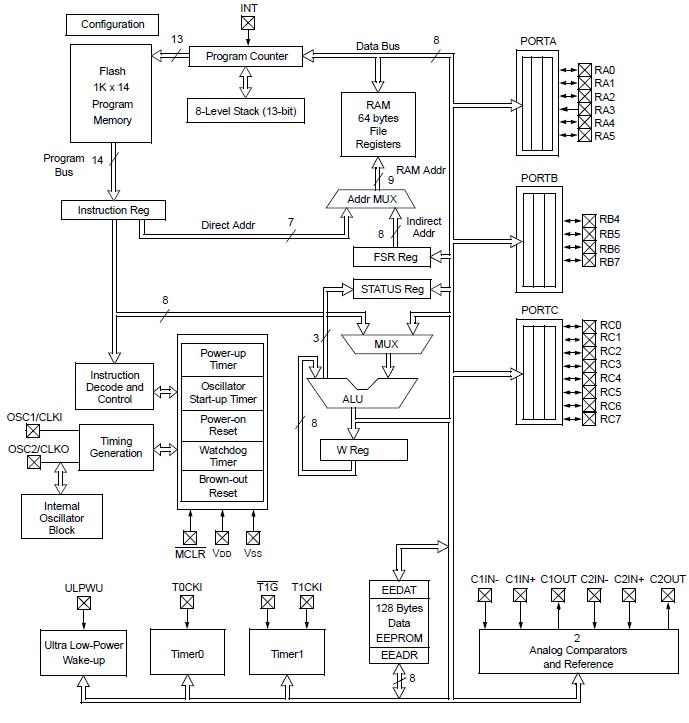

PIC16F684-I/SL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F684-I/SL
PIC16F684-I/SL

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 12 I/O

Data Sheet

0-1: $0.89
1-10: $0.71
10-25: $0.70
25-100: $0.68
PIC16F684-I/SLG
PIC16F684-I/SLG

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 12 I/O Lead Free Package

Data Sheet

Negotiable
