Product Summary
The PVT422 is a solid-state relay. It can replace electromechanical relays in many applications. The PVT422 is driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. The PVT422 is packaged in an 8-pin, molded DIP package with either thru-hole or surface mount (gull-wing) terminals. It is available in standard plastic shipping tubes or on tape-and-reel. The applications of the PVT422 include On/Off Hook switch, Dial-Out relay, Ring injection relay and General switching.
Parametrics
PVT422 absolute maximum ratings: (1)Minimum Control Current: 2.0 mA; (2)Maximum Control Current for Off-State Resistance @TA=+25℃: 0.4 mA; (3)Control Current Range (Caution: current limit input LED): 2.0 to 25 mA; (4)Maximum Reverse Voltage: 6.0 V; (5)Operating Voltage Range: 0 to ±400 V(DC or AC peak); (6)Maximum Load Current @ TA=+40℃, 5mA Control: 120 mA; (7)Maximum Peak Load Current (10ms maximum duration): 350 mA; (8)Maximum On-State Resistance @TA=+25℃: 35 Ω; (9)Maximum Off-State Leakage @TA=+25℃, ±320V: 1.0 μA; (10)Maximum Turn-On Time @TA=+25℃: 2.0 ms; (11)Maximum Turn-Off Time @TA=+25℃: 2.0 ms; (12)Maximum Output Capacitance @ 50VDC: 12 pF.
Features
PVT422 features: (1)HEXFET Power MOSFET output; (2)Bounce-free operation; (3)4,000 VRMS I/O isolation; (4)Linear AC/DC operation; (5)Solid-State Reliability; (6)UL recognized and BABT certified.

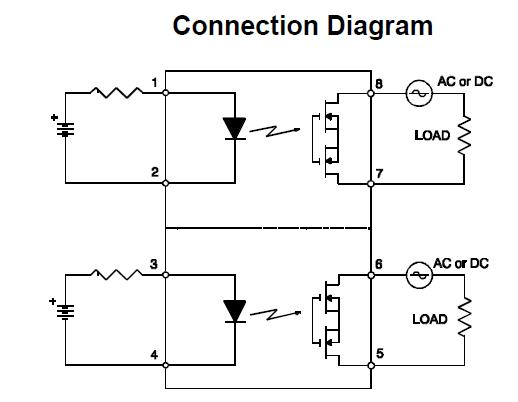

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PVT422 |
International Rectifier |
IC RELAY PHOTOVO 400V 120MA 8DIP |
Data Sheet |
|
|
|||||||||||||
PVT422P |
IC RELAY PHOTOVO 400V 120MA THIN |
Data Sheet |
|
|
||||||||||||||
PVT422PBF |
International Rectifier |
Solid State Relays 400V 2 Form A Photo Voltaic Relay |
Data Sheet |
|
|
|||||||||||||
PVT422SPBF |
International Rectifier |
Solid State Relays |
Data Sheet |
|
|
|||||||||||||
PVT422P-T |
IC RELAY PHOTOVO 400V 120MA THIN |
Data Sheet |
|
|
||||||||||||||
PVT422S |
International Rectifier |
IC RELAY PHOTOVO 400V 120MA 8SMD |
Data Sheet |
|
|
|||||||||||||
PVT422S-TPBF |
International Rectifier |
Solid State Relays 400V 2 Form A Photo Voltaic Relay |
Data Sheet |
|
|
|||||||||||||
PVT422S-T |
International Rectifier |
IC RELAY PHOTOVO 400V 120MA 8SMD |
Data Sheet |
|
|
