Product Summary
The TB9060FNG is a 3-phase full-wave sensorless controller for brushless DC motors. It is capable of controlling voltage by PWM signal input. When combined with various drive circuits, it can be used for various types of motors.
Parametrics
TB9060FNG absolute maximum ratings: (1)Power supply voltage VDD: 6.0 V; (2)Input voltage VIN: -0.2~VDD + 0.2 V; (3)Turn-on signal output current IOUT: 20 mA; (4)Power dissipation PD: 850 mW; (5)Operating temperature Topr: -40~125℃; (6)Storage temperature Tstg: -55~150℃.
Features
TB9060FNG features: (1)3-phase full-wave sensorless drive; (2)PWM control (PWM signal is applied externally.); (3)Turn-on signal output current: 20 mA; (4)Overcurrent protection function; (5)Forward/reverse modes; (6)Lead angle control function; (7)Lap turn-on function; (8)Two types of PWM output (upper PWM and upper/lower alternate PWM); (9)Rotational speed sensing function.

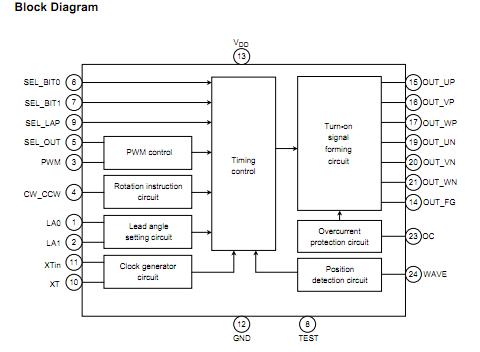

Diagrams
 |
