Product Summary
The FLC057WG is a power GaAs FET that is designed for general purpose applications in the C-Band frequency range as it provides superior power, gain, and efficiency.
Parametrics
FLC057WG absolute maximum ratings: (1)Drain-Source Voltage: 15 V; (2)Gate-Source Voltage: -5 V; (3)Total Power Dissipation: 3.75 W; (4)Storage Temperature: -65 to +175 °C; (5)Channel Temperature: 175 °C.
Features
FLC057WG features: (1)High Output Power: P1dB = 27.0dBm(Typ.); (2)High Gain: G1dB = 9.0dB(Typ.); (3)High PAE: ηadd = 38%(Typ.); (4)Proven Reliability; (5)Hermetic Metal/Ceramic Package.

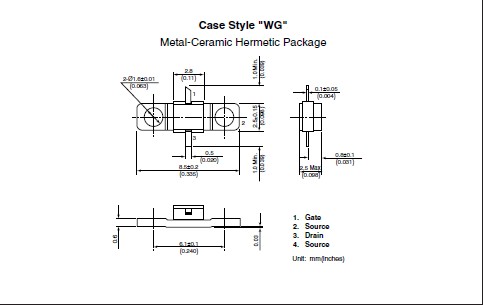

Diagrams
