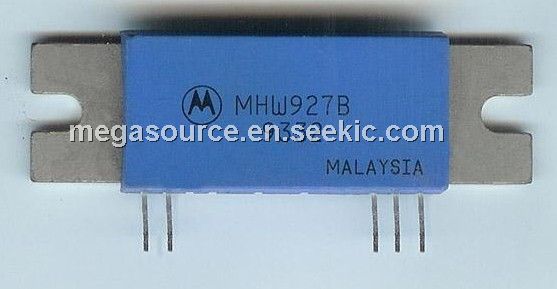

MHW927B

RF Line UHF linear power amplifer, 16.5 Vdc, 3.0 mW, Motorola

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.23~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.25 / Piece
101 ~ 1000 :	1.24 / Piece
1001 ~ 5000 :	1.23 / Piece

PartNumber:: MHW927B

Brand:: Motorola, Inc - Motorola | Pack: | D/C:

Availability:: Supply Ability: 5000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:MHW927B
US $1.23 - 1.25
Quantity:

piece

Product Summary

The mhw927b is a RF Line UHF linear power amplifer designed specifically for the United States digital 3.0 W, mobile radio. The mhw927b is capable of wide power range control, operate from a 12.5 V supply and require 1.0 mW of RF input power.

Parametrics

mhw927b absolute maximum ratings: (1)DC Supply Voltage VS2, VS3: 16.5 Vdc; (2)DC Bias Voltage VB: 10 Vdc; (3)RF Input PowerMHW927A, B Pin: 3.0 mW; (4)RF Output Power Pout: 13 W; (5)Operating Case Temperature Range TC: –30 to +100 °C; (6)Storage Temperature Range Tstg: –30 to +100 °C.

Features

mhw927b features: (1)Operates from a 8.0 Volt Bias Supply (VB); (2)Specified 12.5 Volt Characteristics for MHW927A/B: RF Input Power — 1.0 mW (0 dBm) Max; RF Output Power — 6.0 W; Power Gain — 40 dB Typ; Harmonics — –30 dBc Max @ 2 f0; (3)Linearity (IMD) — –29 dBc Max for 3rd Order; –34 dBc Max for 5th Order; (4)New Biasing and Control Techniques Providing Dynamic Range and Control Circuit Bandwidth Ideal for USDC; (5)50 Ω Input/Output Impedances; (6)Guaranteed Stability and Ruggedness.
