Product Summary

The mrf5176 is an NPN silicon rf power transistor designed for Class C Amplifiers in 225 to 400 MHz Military Communication Equipment.

Parametrics

mrf5176 absolute maximum ratings: (1)IC: 2.0 A; (2)VCBO: 60 V; (3)VCEO: 33 V; (4)VEBO: 4.0 V; (5)PDISS: 30 W @ TC = 25℃; (6)TJ: -65 to +200℃; (7)TSTG: -65 to +150℃; (8)θJC: 6.0℃/W.

Features

mrf5176 features: (1)PG = 10 dB Typical at 400 MHz; (2)Economical.280" Stud Package; (3)Omnigold Metalization System.

Diagrams

mrf5176 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

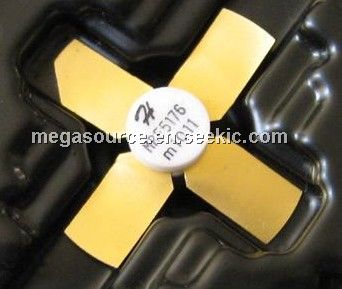

MRF5176
MRF5176
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $45.00
1-10: $37.50
10-25: $33.75
25-50: $30.00
