Product Summary
The DG201BDJ is an analog switch. It is highly improved versions of the industry-standard DG201A/202. The DG201BDJ is fabricated in Vishay Siliconix’ proprietary silicon gate CMOS process, resulting in lower on-resistance, lower leakage, higher speed, and lower power consumption. The applications of the DG201BDJ are (1)Industrial Instrumentation; (2)Test Equipment; (3)Communications Systems; (4)Disk Drives; (5)Computer Peripherals; (6)Portable Instruments; (7)Sample-and-Hold Circuits.
Parametrics
DG201BDJ absolute maximum ratings: (1)Voltages Referenced to V–, V+: 44 V; GND: 25 V; Digital Inputsa VS, VD (V–): –2 V to (V+) +2 V or 30 mA, whichever occurs first; (2)Current, Any Terminal: 30 mA; (3)Peak Current, S or D (Pulsed at 1 ms, 10% duty cycle max): 100mA; (4)Storage Temperature: –65 to 150℃; (5)Power Dissipation: 470 mW.
Features
DG201BDJ features: (1)±22-V Supply Voltage Rating; (2)TTL and CMOS Compatible Logic; (3)Low On-Resistance—rDS(on): 45Ω; (4)Low Leakage—ID(on): 20 pA; (5)Single Supply Operation Possible; (6)Extended Temperature Range; (7)Fast Switching—tON: 120 ns; (8)Low Glitching—Q: 1 pC.

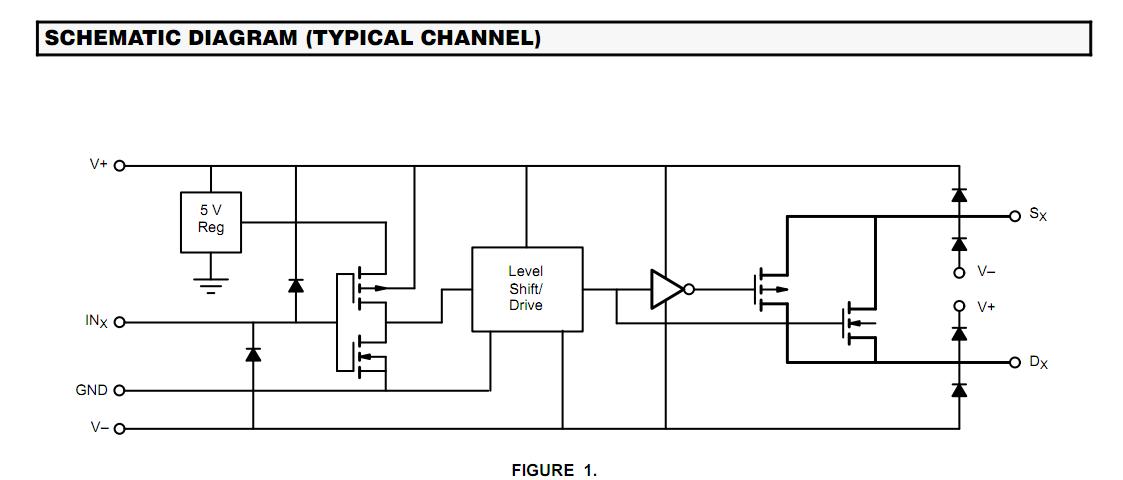

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DG201BDJ |
Vishay/Siliconix |
Analog Switch ICs Quad SPST Switch |
Data Sheet |
Negotiable |
|
||||||||||||
|
DG201BDJ-E3 |
Vishay/Siliconix |
Analog Switch ICs Quad SPST Switch |
Data Sheet |
|
|
||||||||||||
