Product Summary

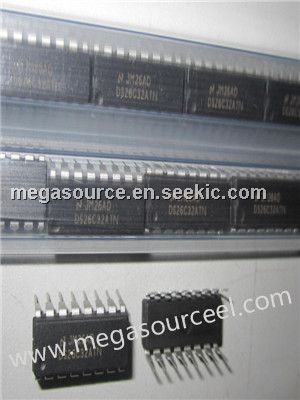

The DS26C32ATN is a quad differential line receiver designed to meet the RS-422,RS-423,and Federal Standards 1020 and 1030 for balanced and unbalancedd igitaldata transmission, while retaining the low power characteristics of CMOS. The DS26C32ATN has an input sensitivity of 200mV over the common mode input voltage range of ±7V. The DS26C32ATN provides an enable and disable function common to all four receivers,and features TRI-STATE output swith 6mA source and sink capability.
Parametrics
DS26C32ATN absolute maximum ratings: (1) Supply Voltage(Vcc) : 7V; (2) Common Mode Range (VCM) : ±14V; (3) Differential Input Voltage (VDIFF): ±14V; (4) Enable Input Voltage (VIN): 7V; (5) Storage Temperature Range(Tstg) : -65 to +150°C; (6) Lead Temperature (Soldering 4sec.) : 260°C.
Features
DS26C32ATN features: (1) CMOS design for low power; (2) ±0.2V sensitivity over input common mode voltage range; (3) Typical propagation delays: 19ns; (4) Typical input hysteresis: 60mV; (4) Meets the requirement sofEIA standard RS-422; (5) TRI-STATE outputs for connection to system buses; (6) Available in Surface Mount; (7) Mil-Std-883C compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS26C32ATN/NOPB |
|
IC LINE RCVR QUAD CMOS 16-DIP |
Data Sheet |
Negotiable |
|
||||
