Product Summary
The mrf835 is an NPN silicon RF low power transisitor designed primerilyfor wideband large signal predriverstages in 800 MHz and UHF frequencyranges.
Parametrics
mrf835 absolute maximum ratings: (1)IC: 200 mA; (2)VCBO: 36 V; (3)PDISS: 1.0 W @ TC = 25 °C; (4)TJ: -65 °C to +150 °C; (5)TSTG: -65 °C to +150 °C; (6)θθθθJC: 40 °C/W.
Features
mrf835 features: (1)Min gain 8.0 dB @ 750 mW/870 MHz; (2)Silicon Nitride passivated; (3)Low cost Plastic Package.

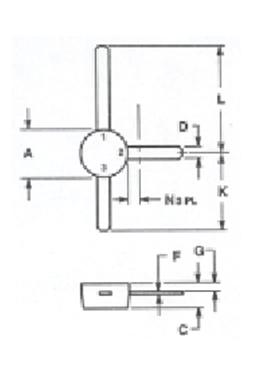

Diagrams
